DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS

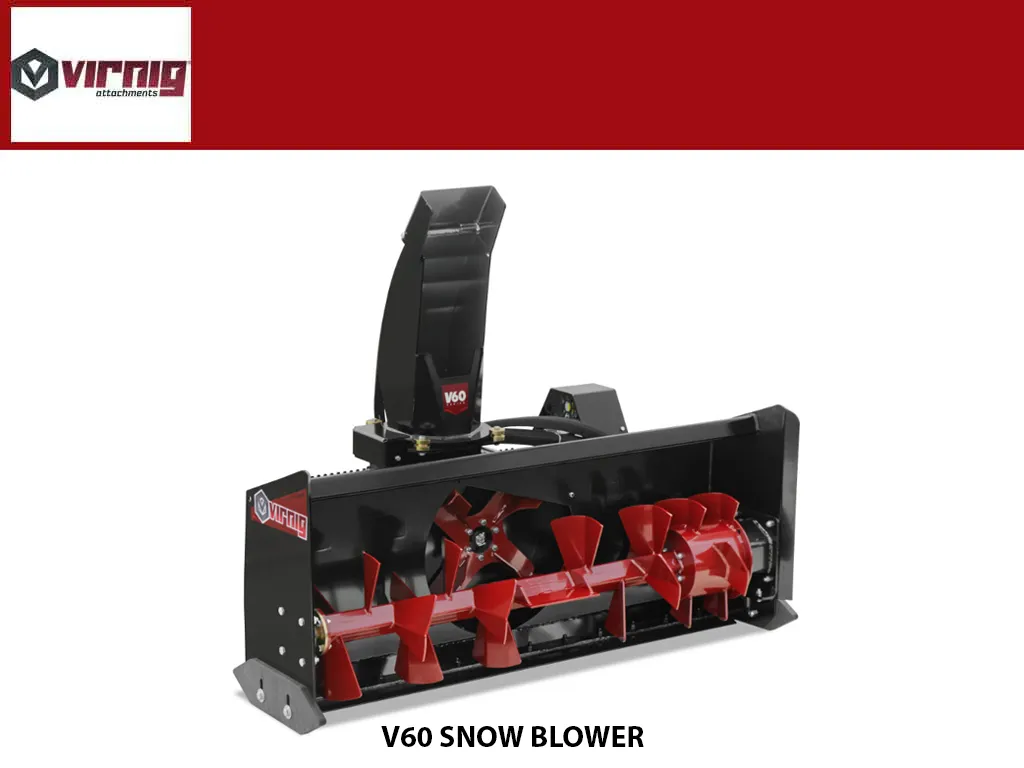

- Optimal auger location continuously feeds the partially enclosed fan to ensure max snow volume exits the chute.
- 3/16” metal surrounding the fan reduces distortion from rocks and debris, resulting in longer blower life.
- 270-degree hydraulic chute rotation and deflector angle allow for precise snow placement.
- Curved chute and shortened deflector decrease resistance for added distance.
- Two, direct drive Eaton® motors with hydraulic pressure relief protection.
- Reversible, replaceable poly skid shoes prevent surface marks.
- Standard with 5/8″ x 8″ reversible, replaceable bolt-on wear edge.
- Manufactured with a universal mount to fit most skid steer loaders.
- Multiple standard flow and high flow motor options available.
AVAILABLE OPTIONS
- 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
- Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control
SPECIFICATIONS
| Model | VBW 60 | VBW 72 | VBW 84 |
| Overall Width/Cut Width (Inches) | 65.0 | 77.0 | 89.0 |
| Overall Depth (Inches) | 47.9 | ||
| Cut Height (Inches) | 28.0 | ||
| Overall Height, Varies with Deflector Position (Inches) | 62.5 | ||
| Fan Diameter (Inches) | 24.0 | ||
| Fan Depth (Inches) | 8.0 | ||
| Auger Diameter (Inches) | 18.0 | ||
| Throwing Distance | Up to 40 feet | ||
| Approximate Weight (pounds) | 1140* | 1220* | 1300* |
| Recommended Loader Capacity | Greater than 1500 pounds | ||
