DESCRIPTION
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS, CYLINDERS & FITTINGS

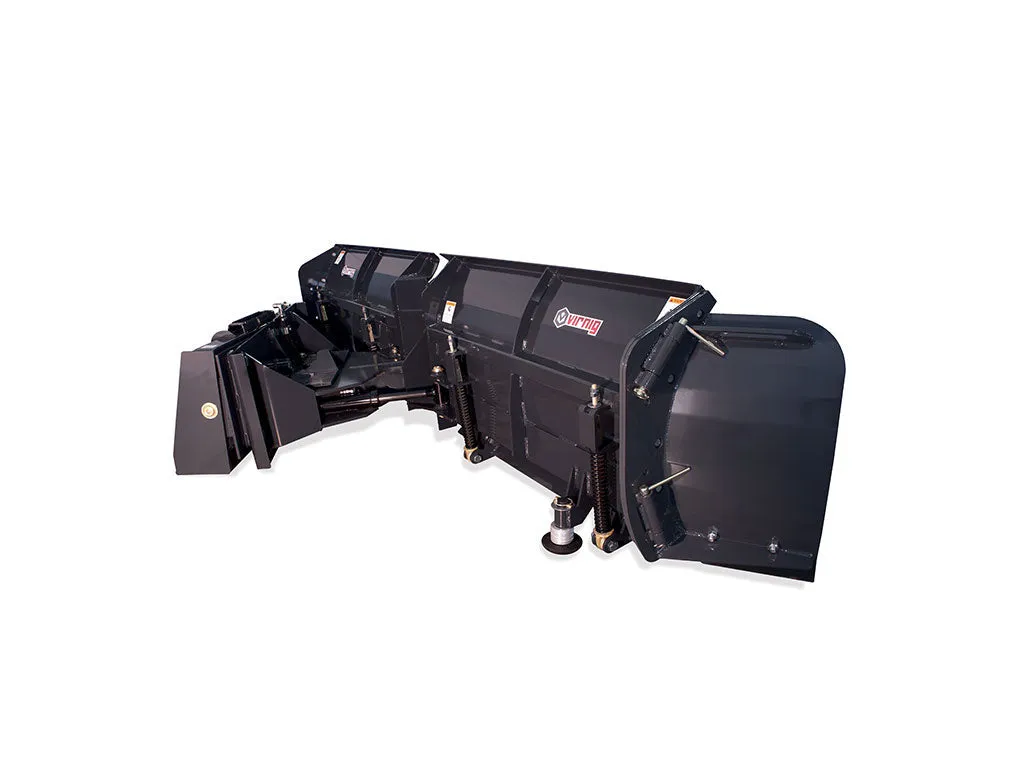

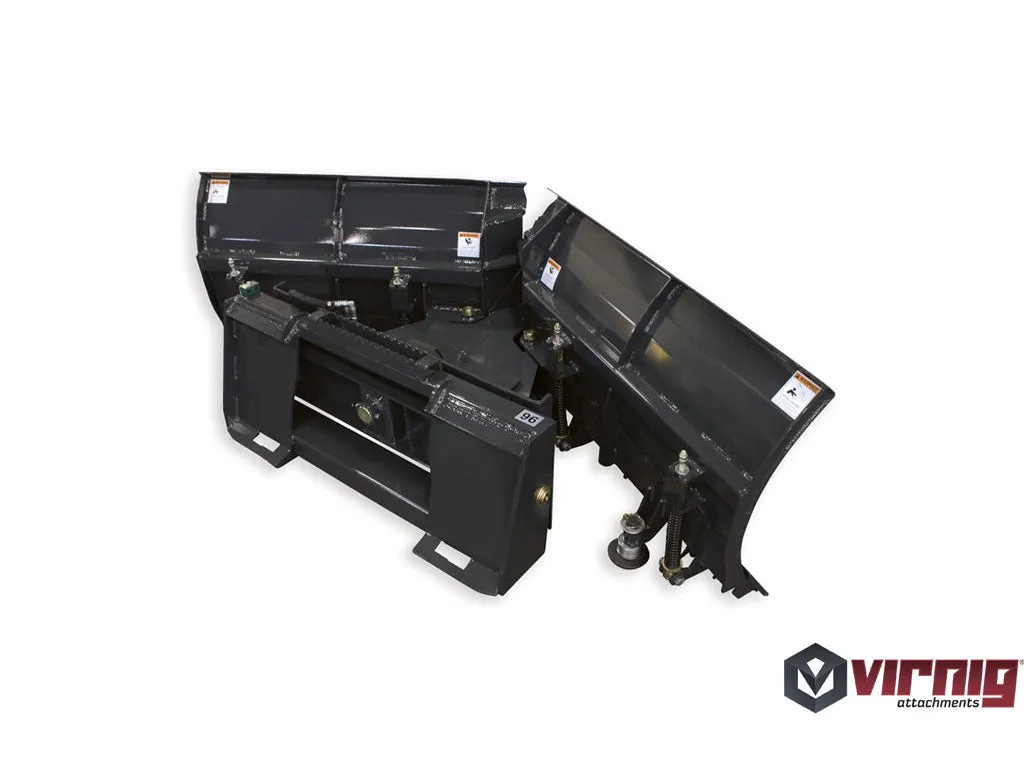

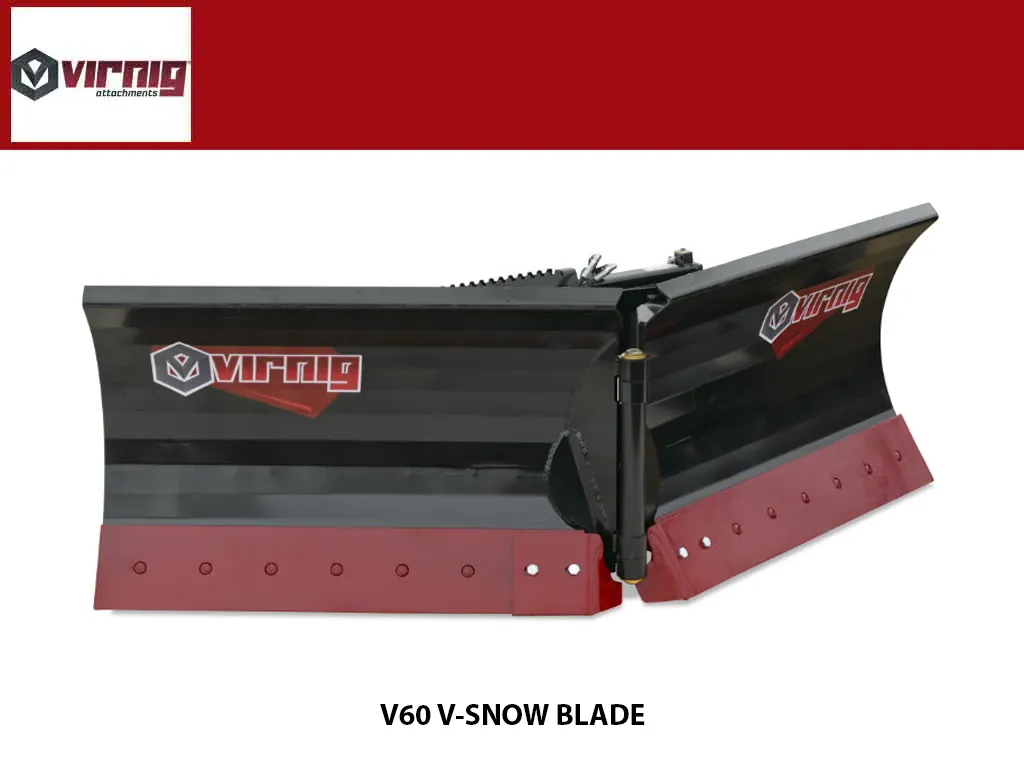

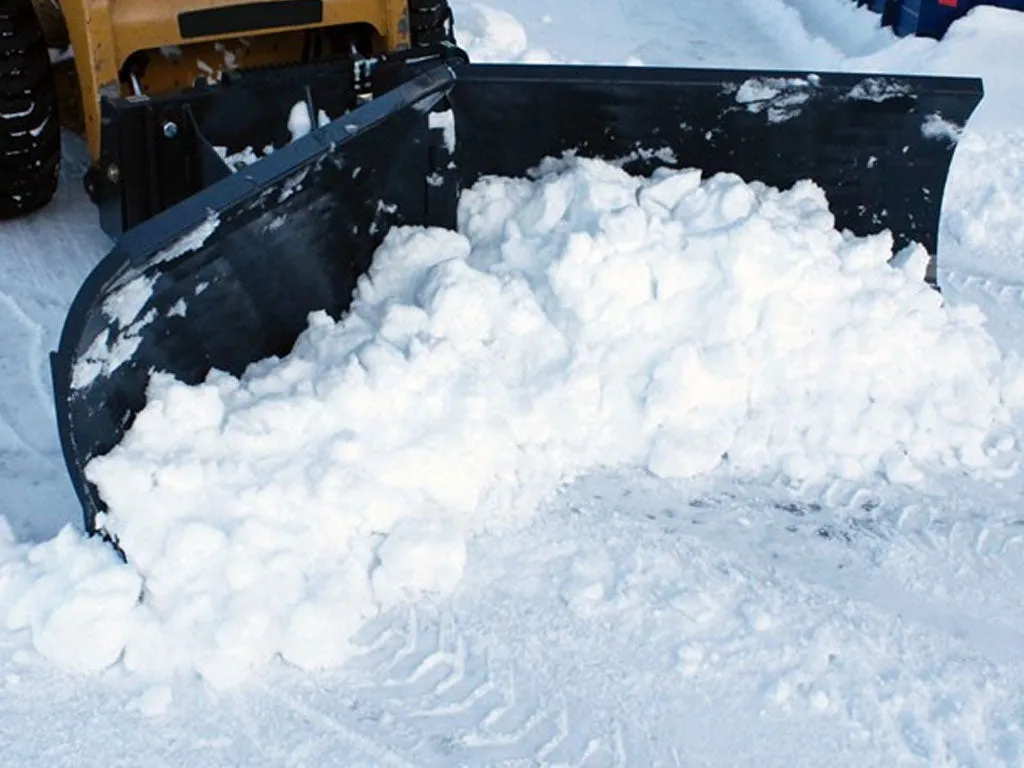

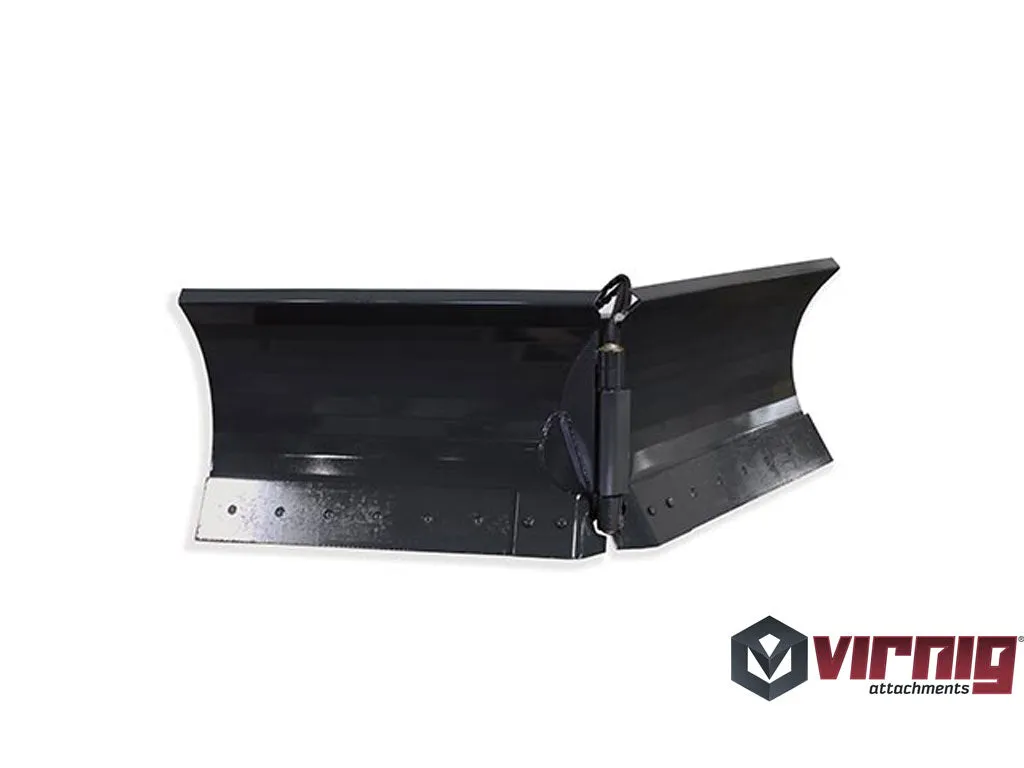

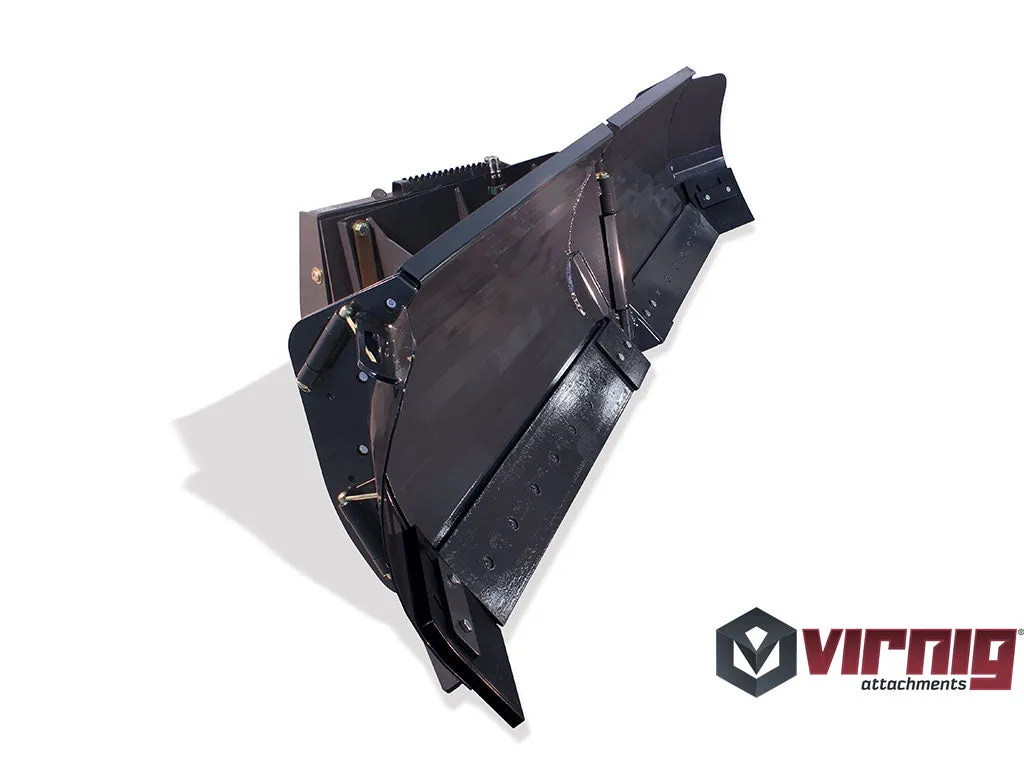

Virnig V60 V-Snow Blade is designed to hug the contours of the ground, in multiple blade positions, for effortless snow removal.

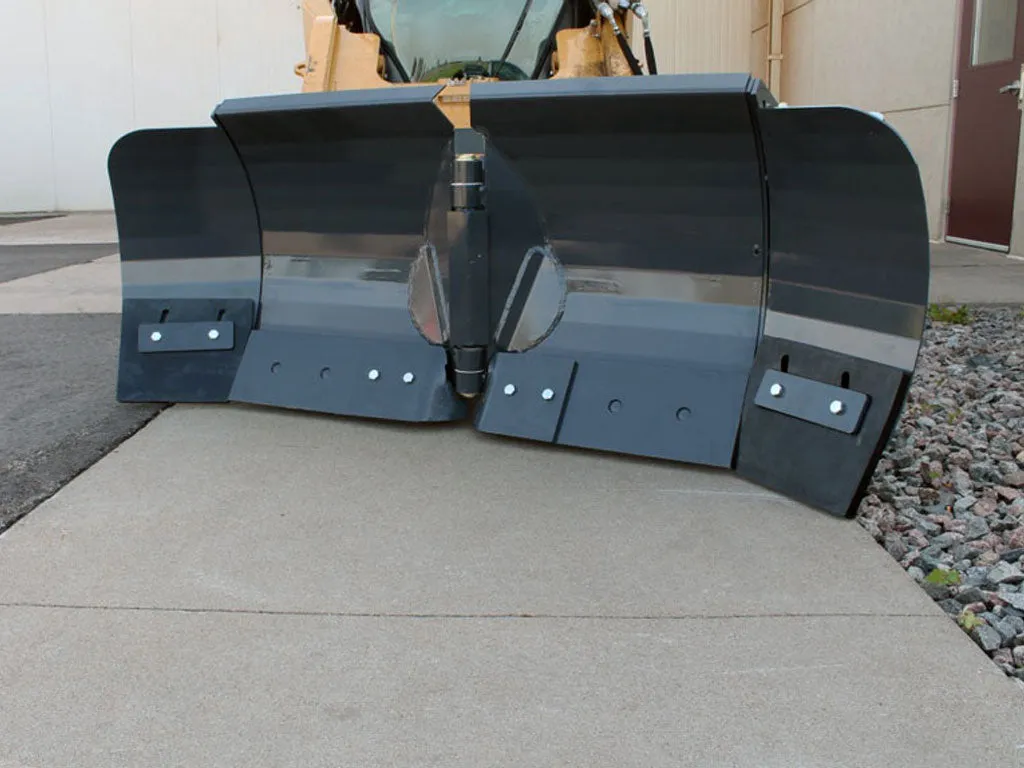

- Variable V, scoop, straight, and angled positions allow for optimal snow removal.
- Floating frame link maintains full blade contact in scoop and V positions while allowing full down pressure in straight and angled positions.
- Oscillation and adjustable cast skid shoes allow edge to follow uneven surfaces.
- Hydraulic sequence relief valves help protect the attachment by transferring shock from one wing to the other if a curb or other object is struck.
- Corrosion, dent, and flake resistant NitroSteel® cylinder rods made in the USA.
- Trip edge containing four compression springs.
- Replaceable steel center edge sections.
- SBV48 (48" model) is designed to plow sidewalks or other tight spaces and has two compression springs.
Also available: Two 12" wide pin-on wings angled 20 degrees forward from the moldboard to increase the blade's width by 21 3/4". Call for pricing.
EDGE OPTIONS
- Steel Edges Installed
- 5/8" x 8ˮ steel bolt-on edges allows 5 ½” of total wear
- Edges are quickly reversed or replaced.
- Poly Edges Installed
- Replaces standard steel cutting edges.
- 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
- Reversible and replaceable like a steel bolt-on edges.
SPECIFICATIONS
| Model | SBV 48 | SBV 60 | SBV 72 | SBV 84 | SBV 96 | SBV 108 | SBV 120 |
| Overall Blade Width (Inches) | 51.5 | 62.0 | 74.0 | 86.0 | 98.0 | 110.0 | 120.0 |
| Blade Height (Inches) | 31.0 | ||||||
| Blade Angle (Degrees) | /- 30 | ||||||
| Width at Full Angle (Inches) | 44.0 | 53.0 | 64.0 | 74.0 | 84.0 | 95.0 | 104.0 |
| Width at Full Scoop (Inches) | 39.8 | 49.0 | 60.0 | 70.0 | 81.0 | 92.0 | 101.0 |
| Width at Full V (Inches) | 48.0 | 57.0 | 66.0 | 76.0 | 88.0 | 99.0 | 108.0 |
| Moldboard Thickness (Inches) | 0.19 | ||||||
| Cutting Edge (Inches) | Steel or Poly | ||||||
| Center Edge (Inches) | 1/2 High Tensile Steel, Bolt-on | ||||||
| Blade Oscillation (Degrees) | /- 4 | ||||||
| Float Link Angle (Degrees) | /- 5 | ||||||
| Approximate Weight (Pounds) | 1065 | 1135 | 1185 | 1240 | 1295 | 1350 | 1390 |
| Recommended Loader(Pounds) | Greater than 1500 | ||||||
